Indoor LED & Stage Installation for a Protocol-Level Event
Sahneva built a 24×8 m stage and a 24×6 m P2 LED screen inside a 40 m tent for a protocol-level event, supported by a scaffold and truss structure. A 60-person crew completed the installation in two working days.
Project details
- Stage / podium
- 24 × 8 m
- LED screen
- 24 × 6 m, P2 pixel pitch
- Structure
- Truss plus scaffold skeleton
- Crew and schedule
- 60 people, 2 working days
Technical scope
- LED
- 24 × 6 m, P2 pixel pitch
- Sound & Light
- Sound and lighting positions carried on truss above the stage
- Stage & Truss
- 24 × 8 m stage on a truss plus scaffold skeleton, inside a 40 m tent
Production approach
Building a protocol-standard stage inside a temporary structure removes the anchor points a permanent venue would give you. The 40 m tent was erected outdoors first, the ground was prepared and carpeted, and only then could the podium and the LED carrier scaffold go up — which is why the sequence, not the equipment, set the two-day schedule.
P2 pixel pitch was chosen because the front rows sit close to a 24×6 m surface, where a coarser panel would break up at viewing distance. Truss carried the sound and lighting positions above the stage, the signal chain was built with redundancy, and stage sightlines, acoustics and lighting balance were tested against protocol requirements before seating went in.
Project gallery

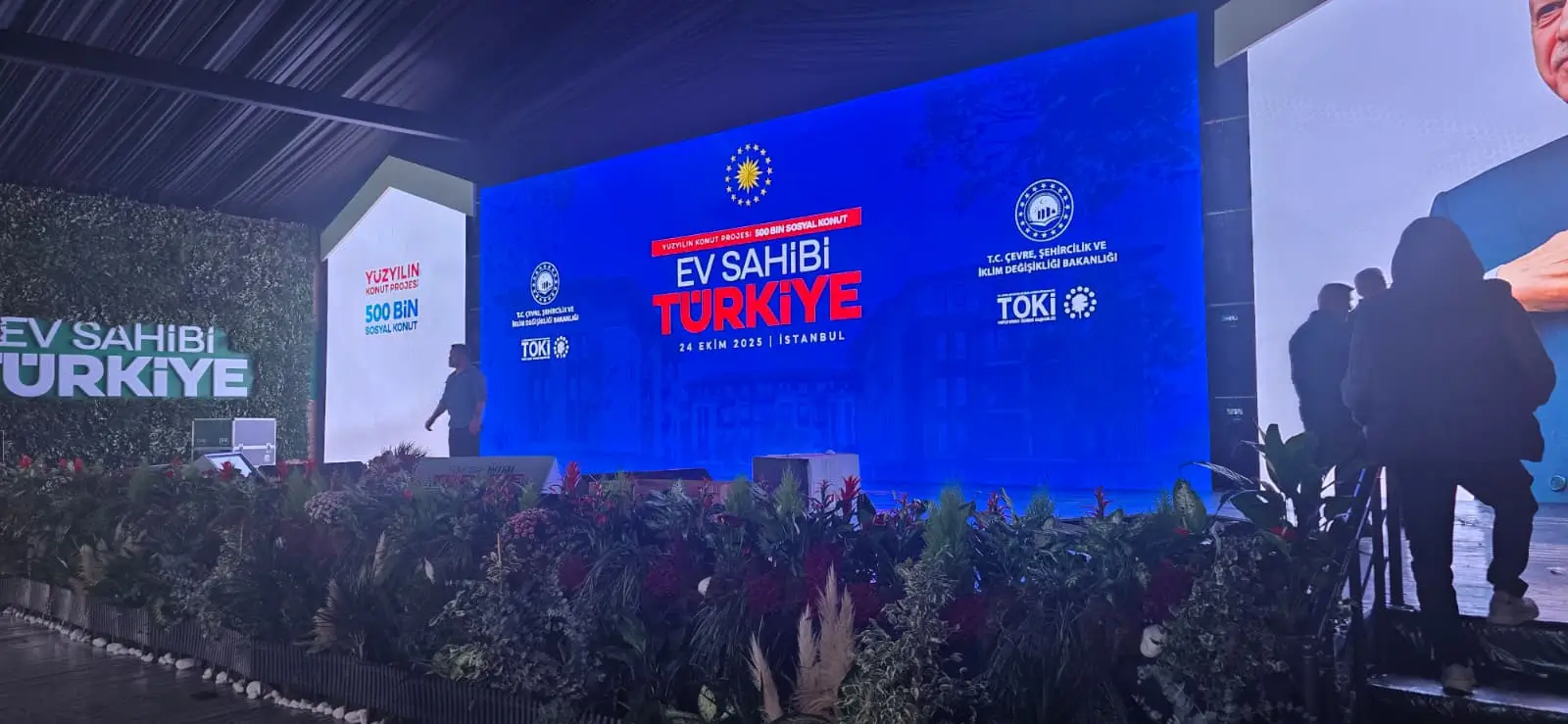

P2 LED screen and stage area with green wall decor at a protocol-level event

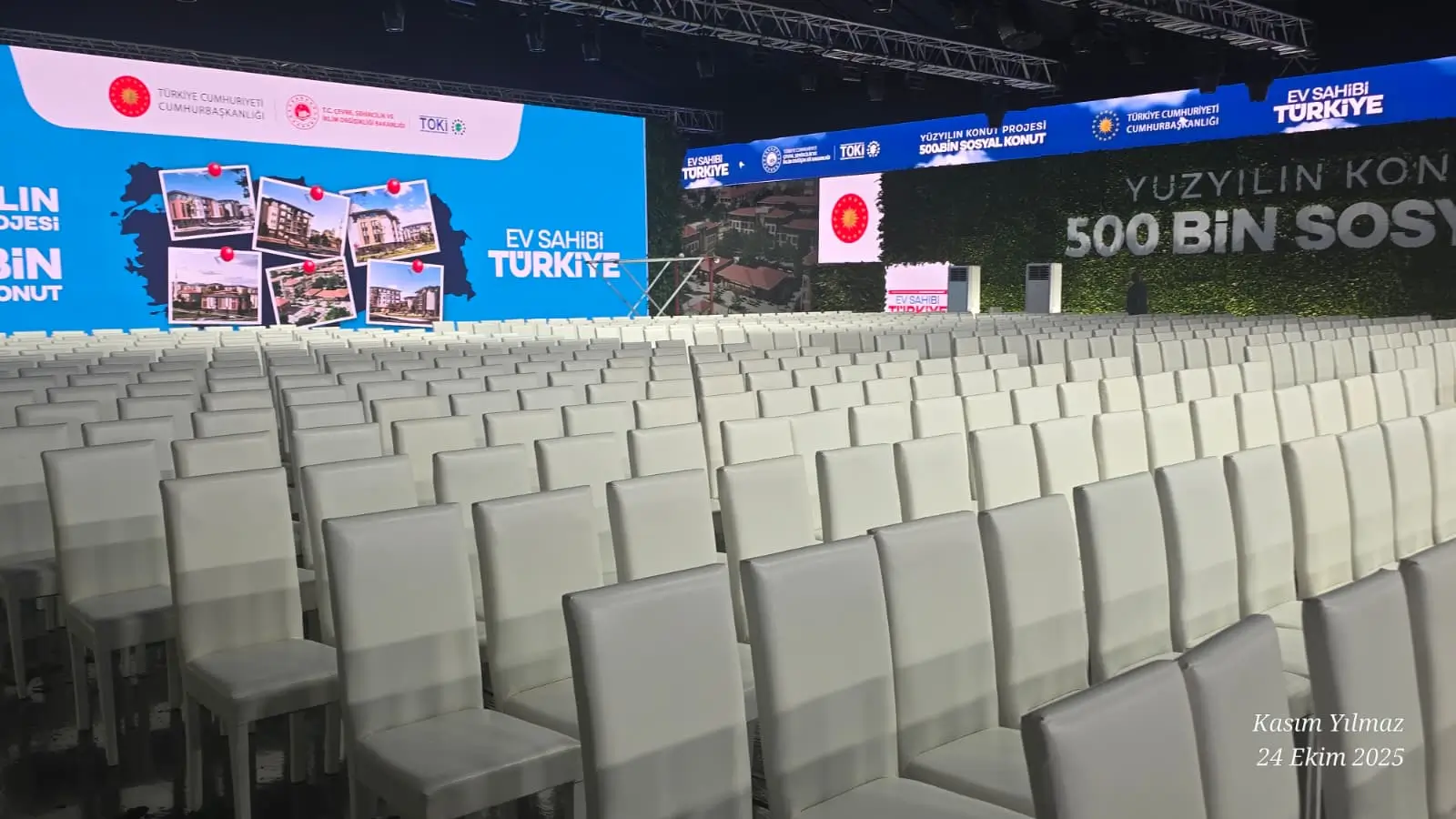

General view of the completed LED screen installation on the 24x8 m stage

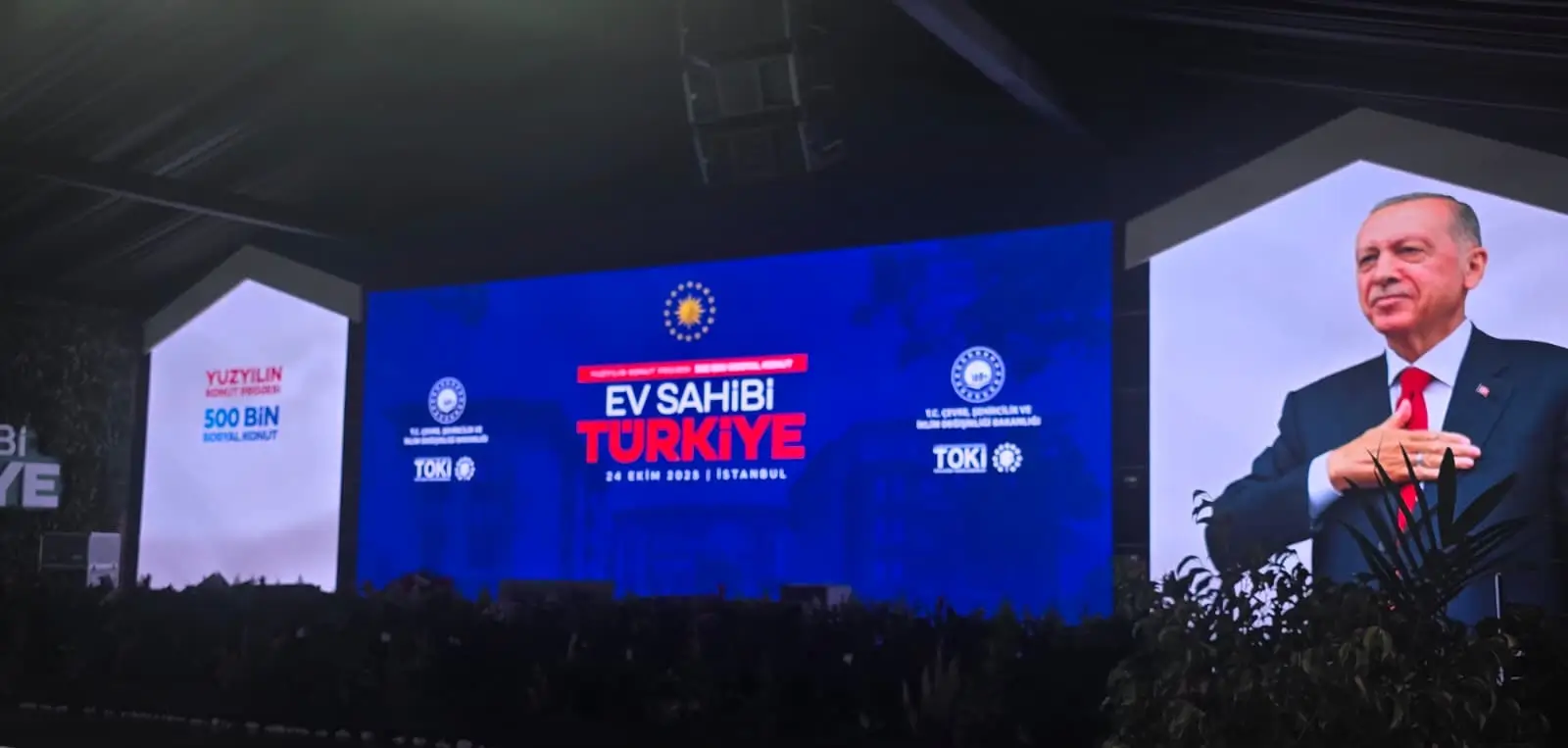

Wide indoor event stage supported by a scaffold and truss skeleton system

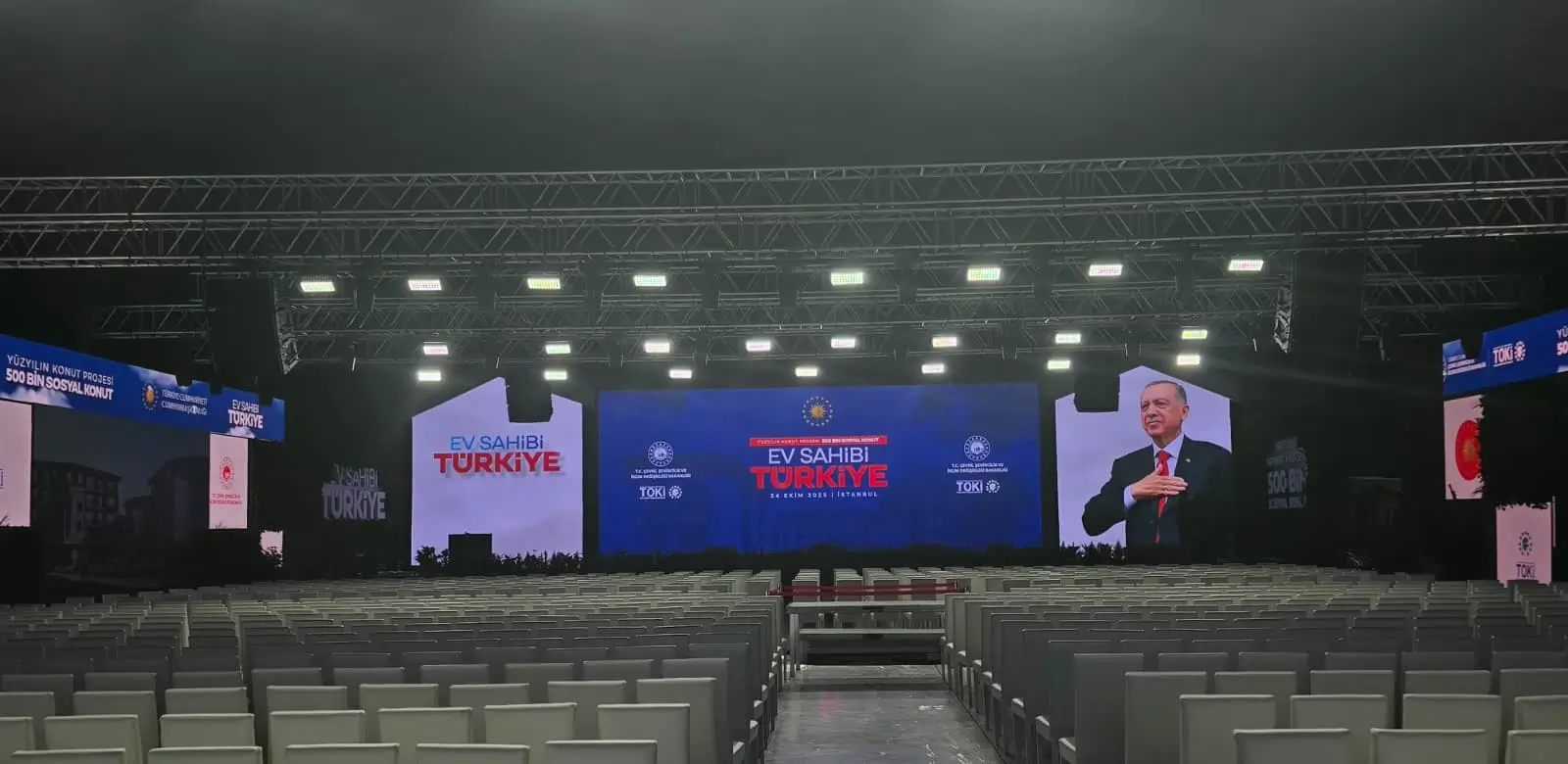

Front view of the stage and seating layout prepared for protocol seating order
